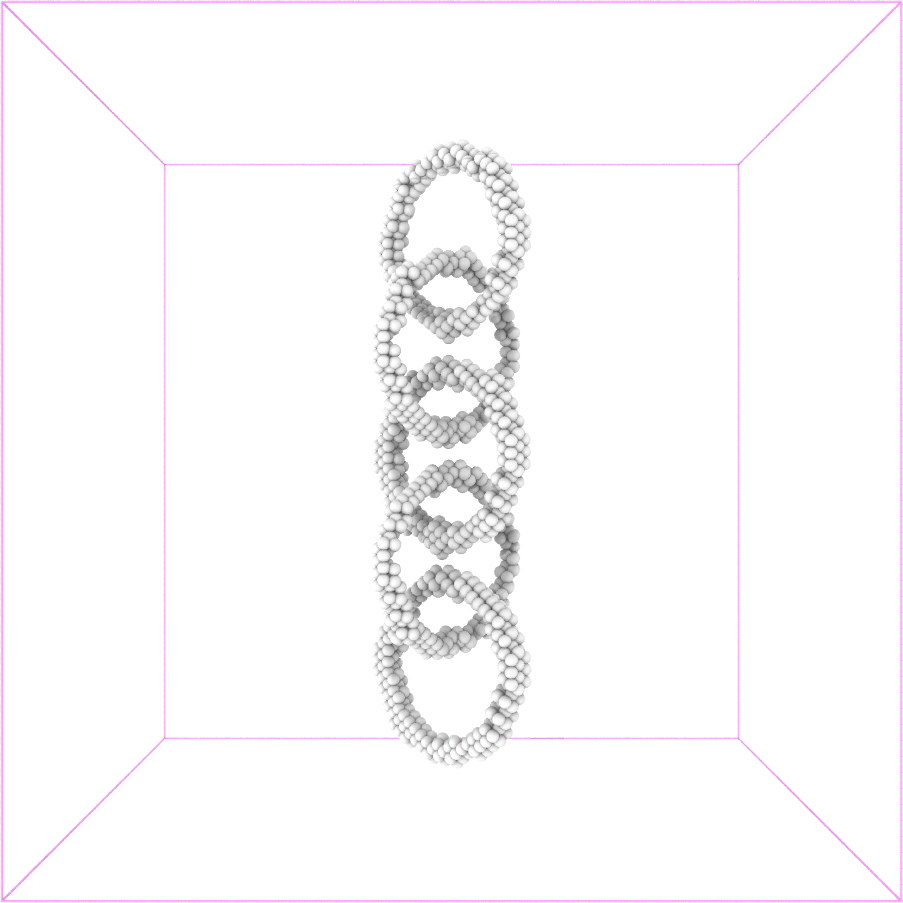

8.7. Nested full dislocation loop
To create an array of nested full dislocation loops in a BCC single crystal sample,
Step 1:
Use the tool in subdirectory tools/Bcc to creat a BCC single crystal sample:
bcc_reg.lmp, use the shell script in subdirectory tools/para_file_nested_loop to create the parameter file:para_file;
Step 2:
Open terminal, run the following command:
1CryDisGen para_file bcc_reg.lmp
Parameter file
Content of the para_file:
1 Region
2 -x 1 0 0
3 -y 0 1 0
4 -z 0 0 1
5 -lat 3.303
6 -pbc 1 1 1
7
8 nLoop 5
9 Loop
10 -bv 1 1 1
11 -bs 1/2
12 -dnorm 1 -1 0
13 -dc 0 0 -60
14 -dr 25
15 -lx 1 1 0
16 -ly 0 0 1
17 -ndisl 8
18
19 Loop
20 -bv 1 1 1
21 -bs 1/2
22 -dnorm 1 1 0
23 -dc 0 0 -30
24 -dr 25
25 -lx -1 1 0
26 -ly 0 0 1
27 -ndisl 8
28
29 Loop
30 -bv 1 1 1
31 -bs 1/2
32 -dnorm 1 -1 0
33 -dc 0 0 0
34 -dr 25
35 -lx 1 1 0
36 -ly 0 0 1
37 -ndisl 8
38
39 Loop
40 -bv 1 1 1
41 -bs 1/2
42 -dnorm 1 1 0
43 -dc 0 0 30
44 -dr 25
45 -lx -1 1 0
46 -ly 0 0 1
47 -ndisl 8
48
49 Loop
50 -bv 1 1 1
51 -bs 1/2
52 -dnorm 1 -1 0
53 -dc 0 0 60
54 -dr 25
55 -lx 1 1 0
56 -ly 0 0 1
57 -ndisl 8
