8.9. Full dislocation loop array

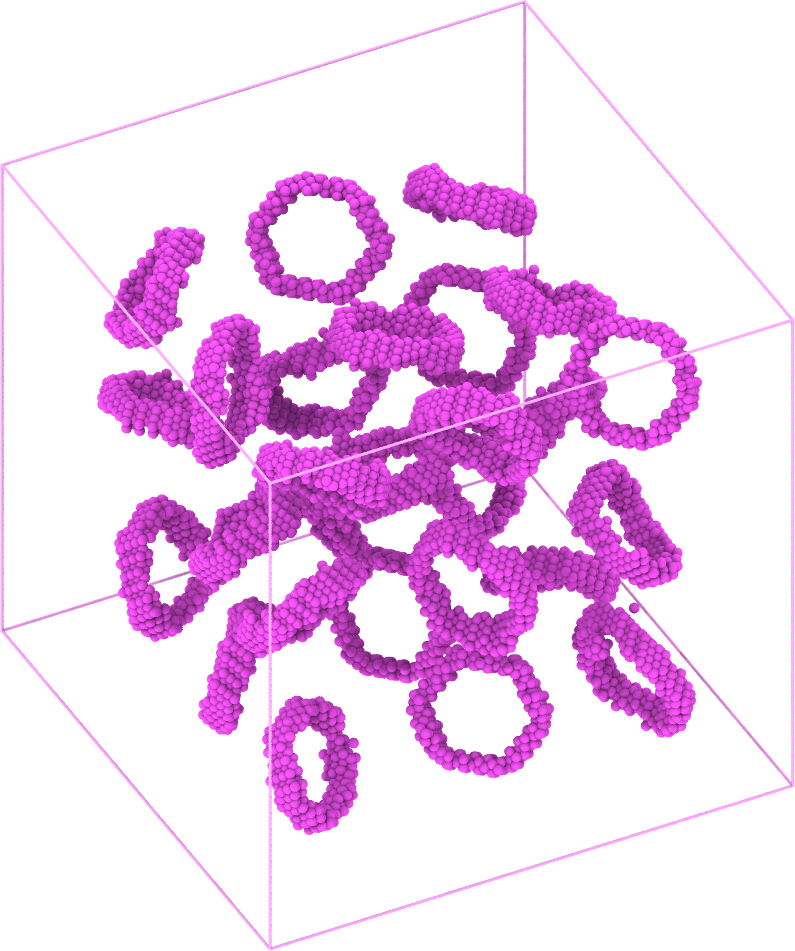

To create an array of full dislocation loops in a BCC single crystal sample,
Step 1:
Use the tool in subdirectory tools/Bcc to creat a BCC single crystal sample:
bcc_reg.lmp, use the shell script in subdirectory tools/para_file_loop_array to create the parameter file:para_file;
Step 2:
Open terminal, run the following command:
1CryDisGen para_file bcc_reg.lmp
Parameter file
Content of the Parameter file:
1 Region
2 -x 1 0 0
3 -y 0 1 0
4 -z 0 0 1
5 -lat 3.301
6 -pbc 1 1 1
7
8 nLoop 27
9 Loop
10 -bv 1 1 1
11 -bs 1/2
12 -dnorm 1 1 1
13 -dc -60 -60 -60
14 -dr 20
15 -lx 1 -1 0
16 -ly 1 1 -2
17 -ndisl 6
18
19 Loop
20 -bv -1 1 1
21 -bs 1/2
22 -dnorm -1 1 1
23 -dc -60 -60 0
24 -dr 20
25 -lx 1 1 0
26 -ly -1 1 -2
27 -ndisl 6
28
29 Loop
30 -bv 1 1 -1
31 -bs 1/2
32 -dnorm 1 1 -1
33 -dc -60 -60 60
34 -dr 20
35 -lx 1 -1 0
36 -ly -1 -1 -2
37 -ndisl 6
38
39 Loop
40 -bv -1 1 1
41 -bs 1/2
42 -dnorm -1 1 1
43 -dc -60 0 -60
44 -dr 20
45 -lx 1 1 0
46 -ly -1 1 -2
47 -ndisl 6
48
49 Loop
50 -bv -1 1 1
51 -bs 1/2
52 -dnorm -1 1 1
53 -dc -60 0 0
54 -dr 20
55 -lx 1 1 0
56 -ly -1 1 -2
57 -ndisl 6
58
59 Loop
60 -bv -1 1 -1
61 -bs 1/2
62 -dnorm -1 1 -1
63 -dc -60 0 60
64 -dr 20
65 -lx 1 1 0
66 -ly 1 -1 -2
67 -ndisl 6
68
69 Loop
70 -bv 1 1 1
71 -bs 1/2
72 -dnorm 1 1 1
73 -dc -60 60 -60
74 -dr 20
75 -lx 1 -1 0
76 -ly 1 1 -2
77 -ndisl 6
78
79 Loop
80 -bv -1 1 -1
81 -bs 1/2
82 -dnorm -1 1 -1
83 -dc -60 60 0
84 -dr 20
85 -lx 1 1 0
86 -ly 1 -1 -2
87 -ndisl 6
88
89 Loop
90 -bv -1 1 1
91 -bs 1/2
92 -dnorm -1 1 1
93 -dc -60 60 60
94 -dr 20
95 -lx 1 1 0
96 -ly -1 1 -2
97 -ndisl 6
98
99 Loop
100 -bv 1 1 -1
101 -bs 1/2
102 -dnorm 1 1 -1
103 -dc 0 -60 -60
104 -dr 20
105 -lx 1 -1 0
106 -ly -1 -1 -2
107 -ndisl 6
108
109 Loop
110 -bv 1 1 -1
111 -bs 1/2
112 -dnorm 1 1 -1
113 -dc 0 -60 0
114 -dr 20
115 -lx 1 -1 0
116 -ly -1 -1 -2
117 -ndisl 6
118
119 Loop
120 -bv 1 1 1
121 -bs 1/2
122 -dnorm 1 1 1
123 -dc 0 -60 60
124 -dr 20
125 -lx 1 -1 0
126 -ly 1 1 -2
127 -ndisl 6
128
129 Loop
130 -bv -1 1 -1
131 -bs 1/2
132 -dnorm -1 1 -1
133 -dc 0 0 -60
134 -dr 20
135 -lx 1 1 0
136 -ly 1 -1 -2
137 -ndisl 6
138
139 Loop
140 -bv 1 1 -1
141 -bs 1/2
142 -dnorm 1 1 -1
143 -dc 0 0 0
144 -dr 20
145 -lx 1 -1 0
146 -ly -1 -1 -2
147 -ndisl 6
148
149 Loop
150 -bv -1 1 1
151 -bs 1/2
152 -dnorm -1 1 1
153 -dc 0 0 60
154 -dr 20
155 -lx 1 1 0
156 -ly -1 1 -2
157 -ndisl 6
158
159 Loop
160 -bv -1 1 1
161 -bs 1/2
162 -dnorm -1 1 1
163 -dc 0 60 -60
164 -dr 20
165 -lx 1 1 0
166 -ly -1 1 -2
167 -ndisl 6
168
169 Loop
170 -bv 1 1 -1
171 -bs 1/2
172 -dnorm 1 1 -1
173 -dc 0 60 0
174 -dr 20
175 -lx 1 -1 0
176 -ly -1 -1 -2
177 -ndisl 6
178
179 Loop
180 -bv -1 1 1
181 -bs 1/2
182 -dnorm -1 1 1
183 -dc 0 60 60
184 -dr 20
185 -lx 1 1 0
186 -ly -1 1 -2
187 -ndisl 6
188
189 Loop
190 -bv 1 1 1
191 -bs 1/2
192 -dnorm 1 1 1
193 -dc 60 -60 -60
194 -dr 20
195 -lx 1 -1 0
196 -ly 1 1 -2
197 -ndisl 6
198
199 Loop
200 -bv 1 1 -1
201 -bs 1/2
202 -dnorm 1 1 -1
203 -dc 60 -60 0
204 -dr 20
205 -lx 1 -1 0
206 -ly -1 -1 -2
207 -ndisl 6
208
209 Loop
210 -bv -1 1 1
211 -bs 1/2
212 -dnorm -1 1 1
213 -dc 60 -60 60
214 -dr 20
215 -lx 1 1 0
216 -ly -1 1 -2
217 -ndisl 6
218
219 Loop
220 -bv -1 1 -1
221 -bs 1/2
222 -dnorm -1 1 -1
223 -dc 60 0 -60
224 -dr 20
225 -lx 1 1 0
226 -ly 1 -1 -2
227 -ndisl 6
228
229 Loop
230 -bv -1 1 1
231 -bs 1/2
232 -dnorm -1 1 1
233 -dc 60 0 0
234 -dr 20
235 -lx 1 1 0
236 -ly -1 1 -2
237 -ndisl 6
238
239 Loop
240 -bv -1 1 1
241 -bs 1/2
242 -dnorm -1 1 1
243 -dc 60 0 60
244 -dr 20
245 -lx 1 1 0
246 -ly -1 1 -2
247 -ndisl 6
248
249 Loop
250 -bv -1 1 1
251 -bs 1/2
252 -dnorm -1 1 1
253 -dc 60 60 -60
254 -dr 20
255 -lx 1 1 0
256 -ly -1 1 -2
257 -ndisl 6
258
259 Loop
260 -bv 1 1 1
261 -bs 1/2
262 -dnorm 1 1 1
263 -dc 60 60 0
264 -dr 20
265 -lx 1 -1 0
266 -ly 1 1 -2
267 -ndisl 6
268
269 Loop
270 -bv -1 1 -1
271 -bs 1/2
272 -dnorm -1 1 -1
273 -dc 60 60 60
274 -dr 20
275 -lx 1 1 0
276 -ly 1 -1 -2
277 -ndisl 6
